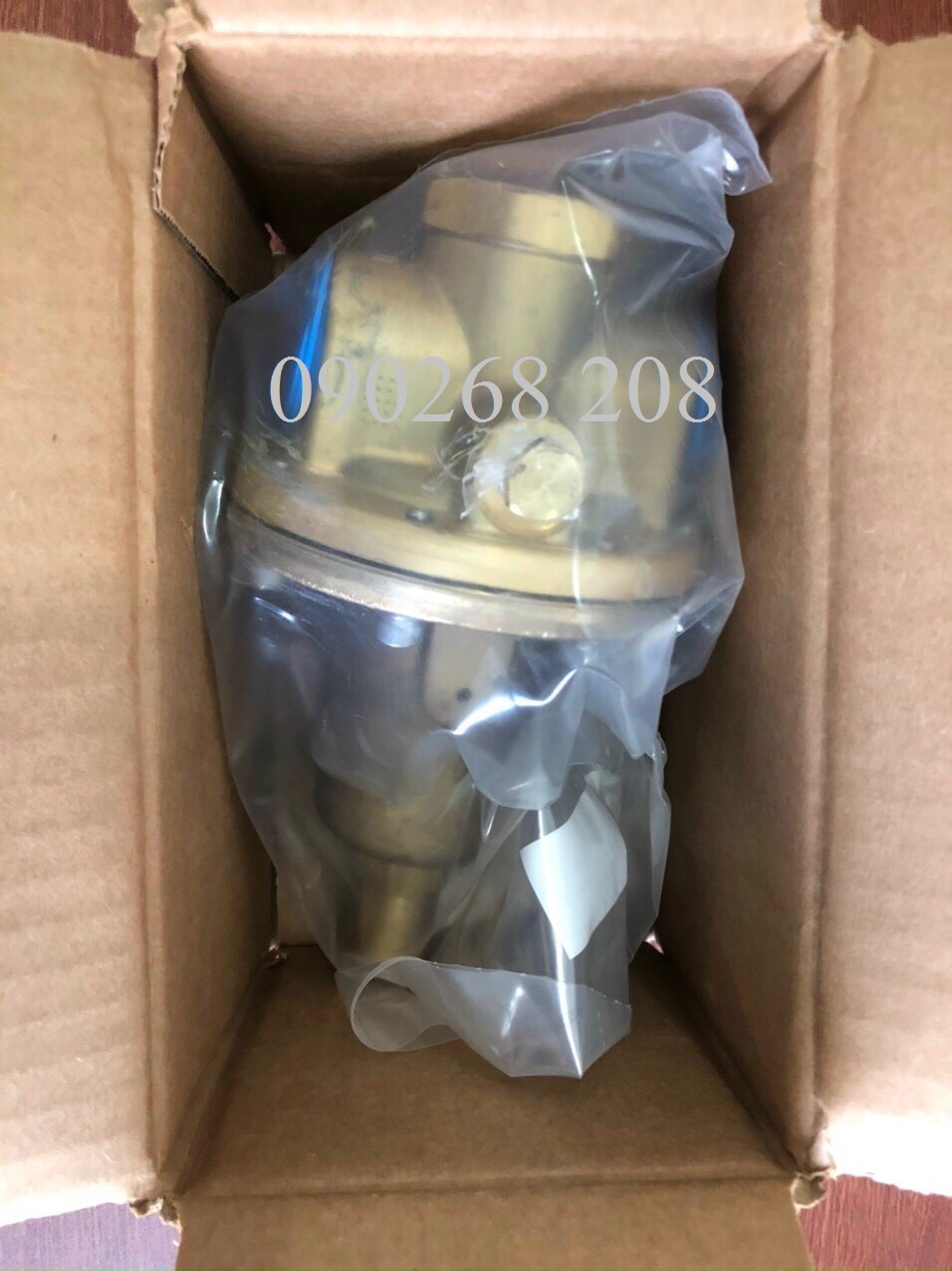

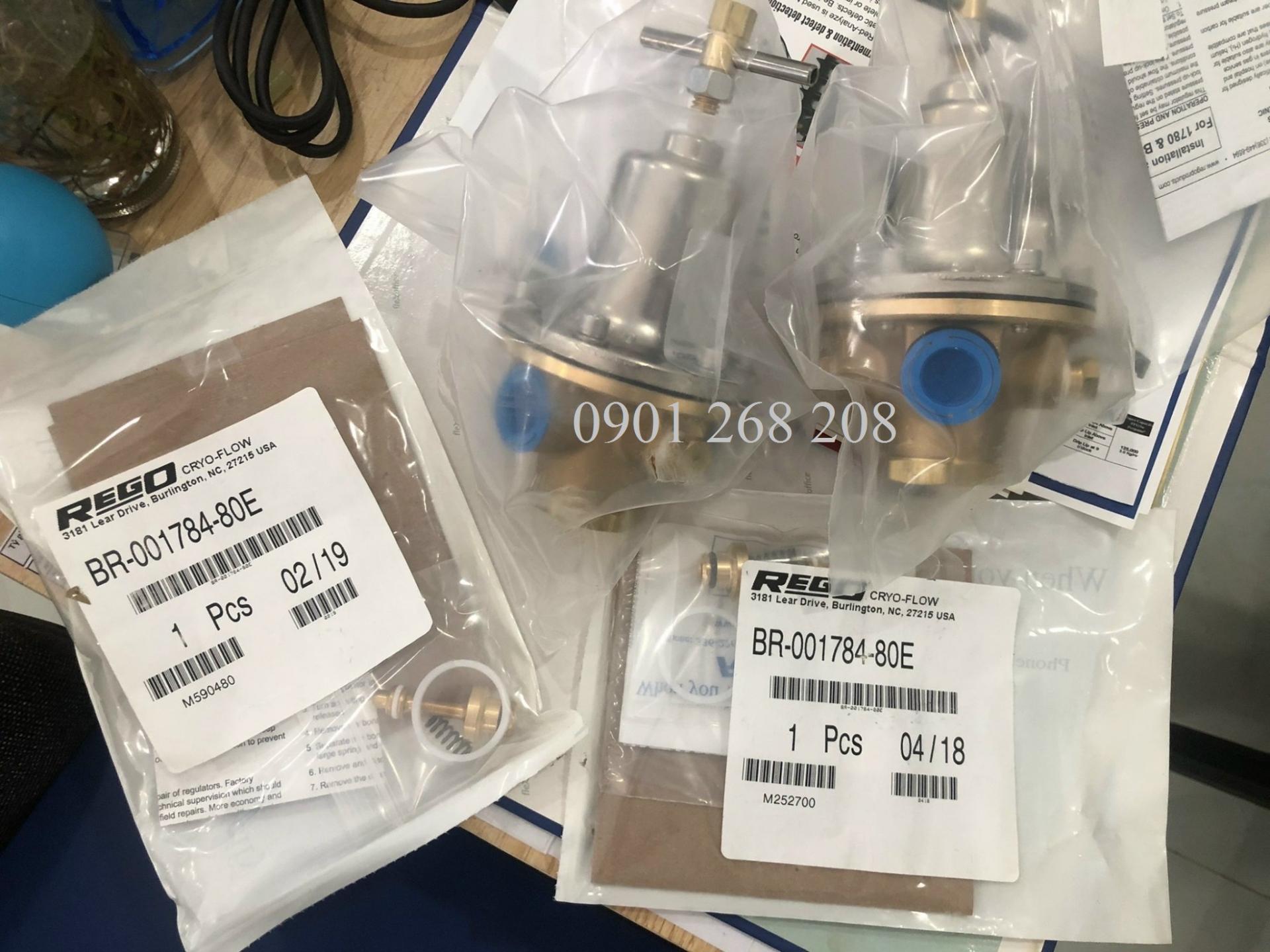

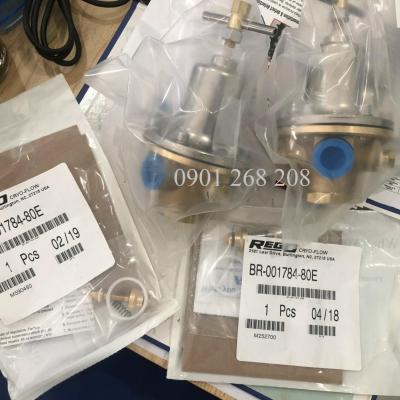

VAN ĐIỀU ÁP REGO BR-1784-08E

Heavy Duty Brass Final Line Pressure Regulator BR-1780 Series
Application BR-1780 Series Regulators are designed for final line pressure regulation on medical oxygen systems. They are equally suitable for a variety of gases in medical or industrial applications. The BR-1780 Series Regulators have a balanced seat, are constructed with oxygen compatible materials, and offer a tamper resistant adjustment screw cap. Flow performance is impressive as well offering up to 30,000 SCFH for the ¾” and 1” model and up to 20,000 SCFH for the ½” model.

Features • Maintains a steady downstream pressure across a range of inlet pressures commonly provided by a cryogenic bulk tank. • Large seat and diaphragm areas provide high capacity with sensitive control of delivery pressure with low falloff. • Two ¼” FNPT plugged delivery pressure gauge ports are located on each side of the valve. • Two bonnet drain/vent holes to allow for various mounting orientations. • Bonnet cap covering adjusting screw for tamper protection. • Maximum inlet pressure is 500 psig (34 Bar). • Available in four delivery pressure ranges. (A-D) • Temperature range: -40° F to +165° F. (-40ºC to +74ºC) • Cleaned per CGA G-4.1 for oxygen service. • 100% Factory Tested.
