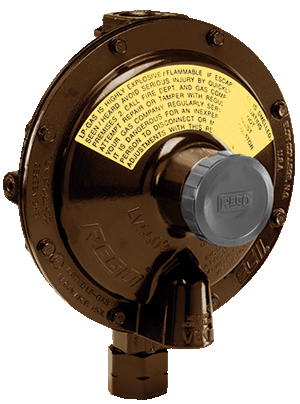

VAN ĐIỀU ÁP THẤP ÁP REGO LV5503B

Hãng sản xuất:

REGO

Mã sản phẩm:

LV5503B

VAN ĐIỀU ÁP CẤP HAI REGO LV5503B Series
Model: LV5503B4, LV5503B6, LV5503B8, LV5503B4D, LV5503B6D, LV5503B8D, LV5503B8D, LV5503B5D, LV5503B16D, LV5503B48
Xuất xứ: Rego USA

Application Designed to reduce first stage pressure of 5 to 20 PSIG down to burner pressure,normally 11” w.c. Ideal for larger commercial and industrial applications, multiple cylinder installations and large domestic systems. RegO Dielectric second stage regulators are engineered to isolate potential electrical current from metallic piping before entering a building. The use of a separate dielectric union is not necessary because the regulator contains a dielectric union as part of the inlet assembly. Available in both SAE Flare and F.NPT inlet connection.

LH: 0901268208

Low Pressure Second Stage Regulators - Standard Settings LV5503B SeriesModel: LV5503B4, LV5503B6, LV5503B8, LV5503B4D, LV5503B6D, LV5503B8D, LV5503B8D, LV5503B5D, LV5503B16D, LV5503B48
Xuất xứ: Rego USA
Application Designed to reduce first stage pressure of 5 to 20 PSIG down to burner pressure,normally 11” w.c. Ideal for larger commercial and industrial applications, multiple cylinder installations and large domestic systems.

Features • Incorporates integral relief valve. • With 15 PSIG inlet pressure, regulator is designed to not pass more than 2 PSIG with the seat disc removed. • Replaceable valve orifice and valve seat disc. • Straight line valve closure saves wear on seat disc and orifice. • Built in pressure tap has plugged⅛” F.NPT outlet. Plug can be removed with a 3⁄16” hex allen wrench. • Large bonnet vent profile minimizes vent freeze over when properly installed. • Extra long lever arm for uniform delivery pressure. • Large diaphragm is extra sensitive to pressure changes
