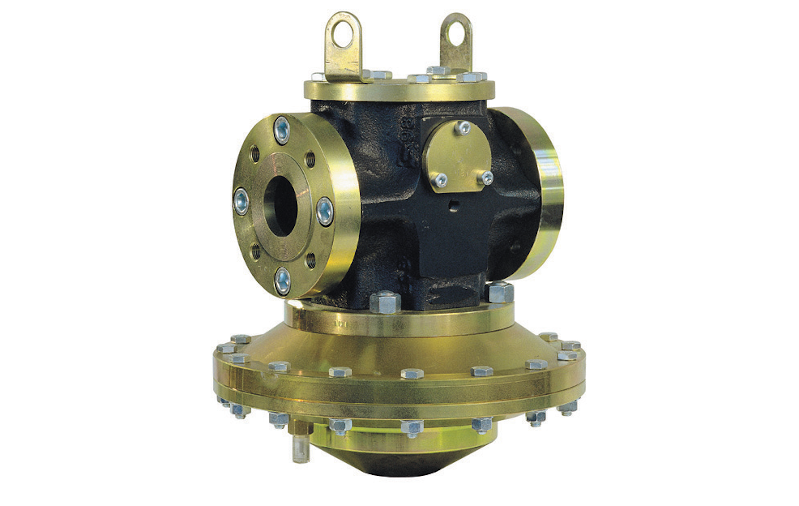

GAS PRESSURE REGULATOR TARTARINI CRONOS C / 080

Hãng sản xuất:

TARTARINI CRONOS

GAS PRESSURE REGULATOR TARTARINI CRONOS C / 080
Gas pressure regulator TARTARINI CRONOS C / 080 is a valve type pilot gas pressure regulator with modular and compact design, soft sealing, balanced valve and high flow capacity. The design of the gas pressure regulator is reliable: the service interval is 7 years; 40 years is the assigned service life of the pressure regulator. TARTARINI CRONOS gas pressure regulators are successfully used in gas distribution stations, AGRS, UPTPG, GRP, GRPB, ShRP, GRU, including for power facilities.

LH: 0901268208

GAS PRESSURE REGULATOR TARTARINI CRONOS C / 080

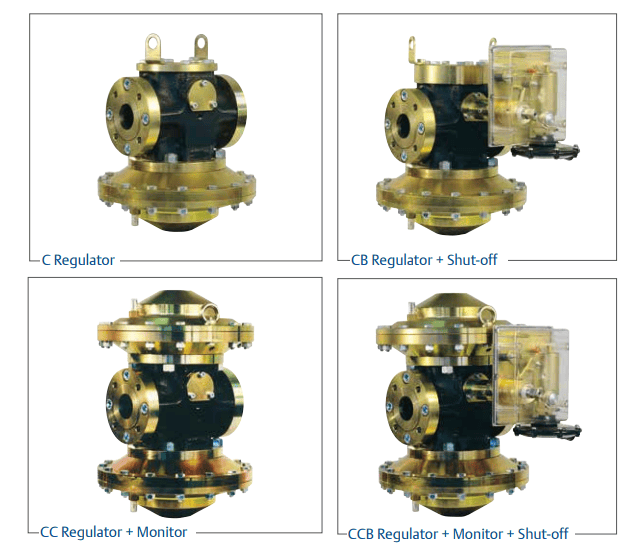

Model: C Regulator, CB Regulator + Shut-off, CC Regulator + Monitor, CCB Regulator+Shut-off+ monitor

Gas pressure regulator TARTARINI CRONOS C / 080 is a valve type pilot gas pressure regulator with modular and compact design, soft sealing, balanced valve and high flow capacity. The design of the gas pressure regulator is reliable: the service interval is 7 years; 40 years is the assigned service life of the pressure regulator. TARTARINI CRONOS gas pressure regulators are successfully used in gas distribution stations, AGRS, UPTPG, GRP, GRPB, ShRP, GRU, including for power facilities.

Maximum throughput		277677 nm3 / h
Maximum inlet pressure		100 bar
Output pressure setting range		1 ÷ 80 bar
Connection type same input / output		flanged DN80X80
Connection type various input / output		flanged DN80Х250
Accuracy of maintaining outlet pressure (АС)		up to ± 1%
Fully closed pressure class (SG)		up to ± 5%
Flange pressure class PN 16 - ANSI 150 (1 version)
Allowable pressure		20 bar
Inlet pressure range		0.2 ÷ 20 bar
Outlet pressure range		0.01 ÷ 16 bar
Minimum working pressure drop		0.2 bar
Flange pressure class PN 25/40 - ANSI 300/600 (2nd version)
Allowable pressure		100 bar
Inlet pressure range		1 ÷ 100 bar
Outlet pressure range		0.5 ÷ 80 bar
Minimum working pressure drop		0.5 bar
Temperature of the transported medium	Standard	- 10 ° С ÷ + 60 ° С
	Low temperature	- 20 ° С ÷ + 60 ° С
Ambient temperature	Standard	- 20 ° С ÷ + 80 ° С
	Low temperature	- 40 ° С ÷ + 80 ° С
Gas pressure regulator materials	Housing Flanges and covers Regulator shutter Saddle Membranes Valve seat seal	Steel ASTM A350 LF2 Steel ASTM A350 LF2 Steel ASTM A350 LF2 Stainless steel NBR + nylon wolf NBR or PU

Possibility of completing with relay valves
V / 31 - 1	Permissible pressure PS	19 bar
V / 31 - 1	Setting range Wd	0.025 - 0.55 bar
PRX / 131 - PRX / 181 - PRX / 182	Permissible pressure PS	100 bar
PRX / 131 - PRX / 181 - PRX / 182	Setting range Wd	0.5 - 40
PRX - AP / 131 - PRX - AP / 181 - PRX - AP / 182	Permissible pressure PS	100 bar
PRX - AP / 131 - PRX - AP / 181 - PRX - AP / 182	Setting range Wd	30 - 80

Can be equipped with pilots
PS / 79 - 1	Permissible pressure PS	25 bar
	Setting range Wd	0.01 ÷ 0.5 bar
PS / 79 - 2	Permissible pressure PS	25 bar
	Setting range Wd	0.5 ÷ 0.3 bar
PS / 79	Permissible pressure PS	100 bar
	Setting range Wd	0.5 ÷ 40 bar
PS / 80	Permissible pressure PS	100 bar
	Setting range Wd	1.5 ÷ 40 bar
PRX / 120	Permissible pressure PS	100 bar
	Setting range Wd	1 ÷ 40 bar
PRX - AP / 120	Permissible pressure PS	100 bar
	Setting range Wd	30 ÷ 80 bar
All PS series pilots are supplied with a filter (filter fineness 5 microns) and an integrated pressure stabilizer. Type SA / 2 stabilizer filters must be used with PRX series pilots.
Built - in slam - shut		no
Weight of gas pressure regulator PN 16 - ANSI 150 with SR silencer		128 kg.
Weight of gas pressure regulator PN 25/40 - ANSI 300/60 version with SR silencer		171 kg.
Weight of the gas pressure regulator PN 16 - ANSI 150 version with SRS silencer		190 kg.
Weight of gas pressure regulator version PN 25 / 40 - ANSI 300/60 with SRS silencer		273 kg.
