VAN CẦU INOX CHO KHÍ LẠNH SÂU SK Advantage Series

VAN CẦU INOX CHO KHÍ LẠNH SÂU

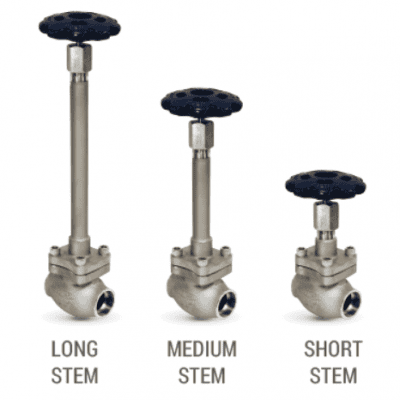

Stainless Steel Globe Valves for Cryogenic Service SK Advantage Series Long Stem
Model: SKL9402SW, SKL9404SW, SKL9406SW, SKL9408SW, SKL9412SW, SKL9416SW, SKL9402BW, SKL9404BW, SKL9406BW, SKL9408BW, SKL9412BW, SKL9416BW

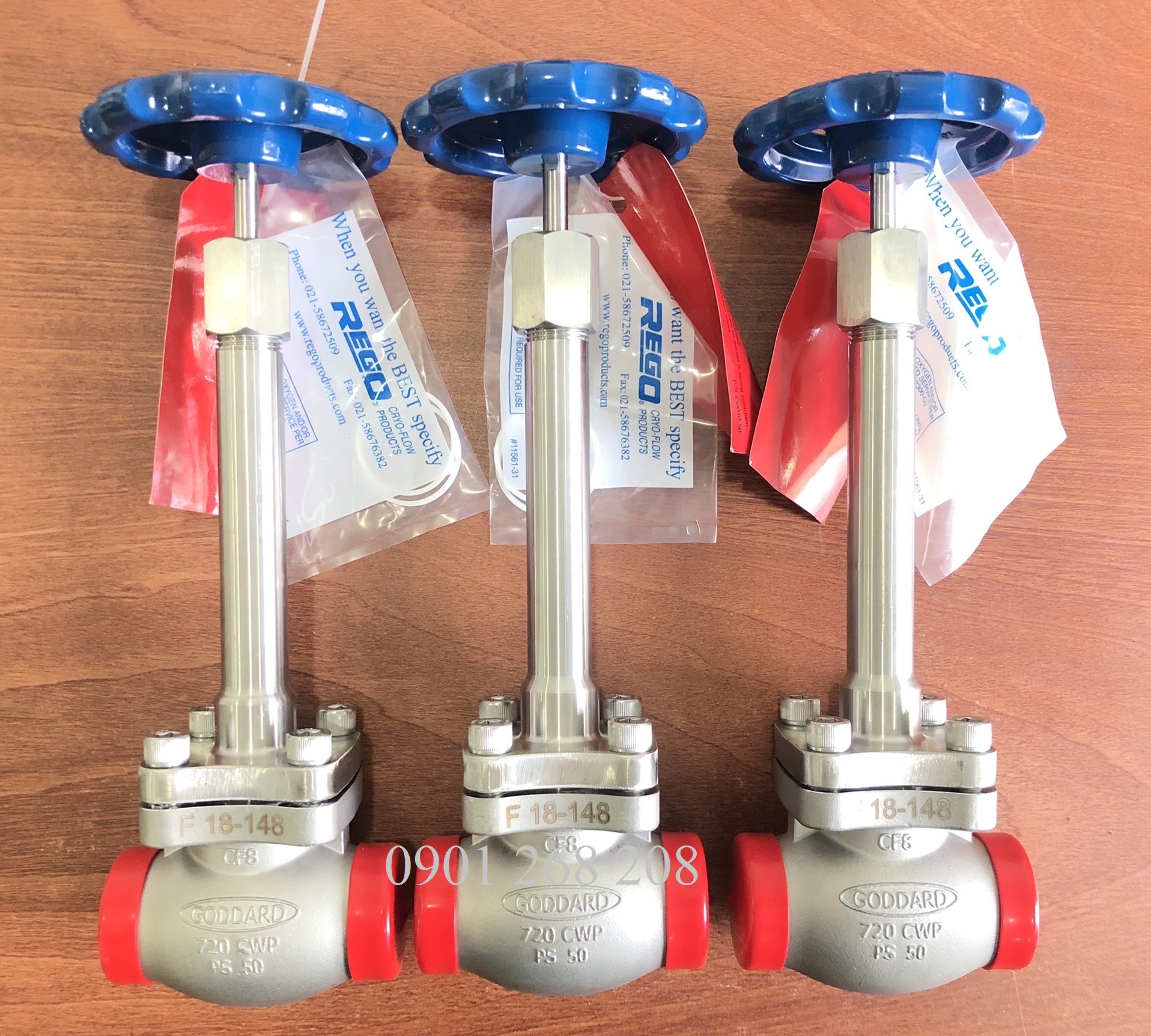

Stainless Steel Globe Valves for Cryogenic Service SK Advantage Series Medium Stem
Model: SKM9402SW, SKM9404SW, SKM9406SW, SKM9408SW, SKM9412SW, SKM9416SW, SKM9402BW, SKM9404BW, SKM9406BW, SKM9408BW, SKM9412BW, SKM9416BW

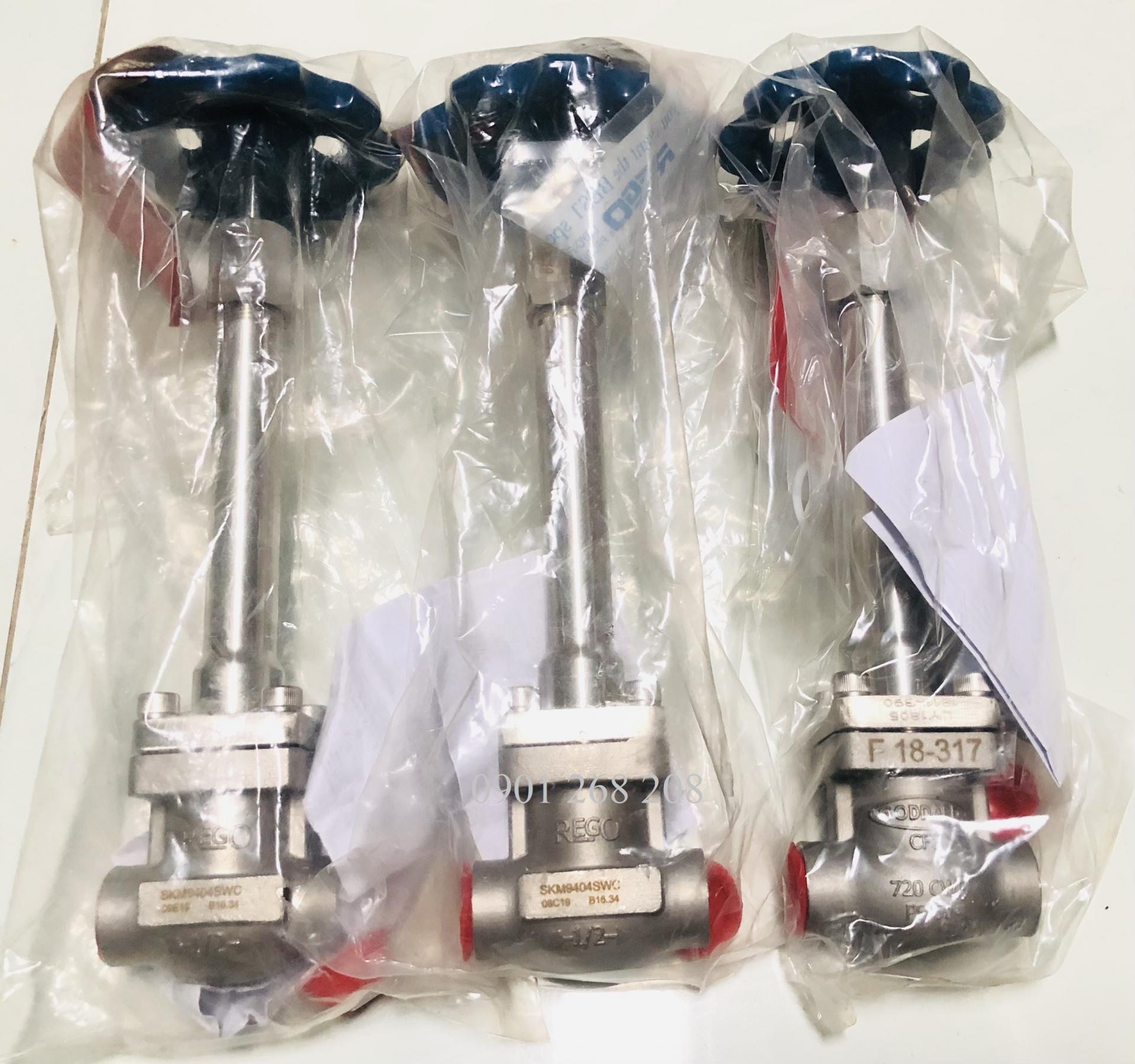

Stainless Steel Globe Valves for Cryogenic Service SK Advantage Series Short Stem
Model: SKS9402SW, SKS9404SW, SKS9406SW, SKS9408SW, SKS9412SW, SKS9402BW, SKS9404BW, SKS9406BW, SKS9408BW, SKS9412BW

Size kết nối: 8A-50A
Áp suất làm việc: 50 bar
Nhiệt độ làm việc: -198 đến +65 độ C

Application The SK Advantage Series of Stainless Steel Globe Valves are designed for handling cryogenic liquids through trailer, bulk vessels and piping configurations. Ideal service medium includes oxygen, nitrogen, krypton, carbon dioxide, dinitrogen monoxide, carbon dioxide, methane, ethane, ethylene, argon and LNG . Our Kold-Seal stem seal technology assures a tight seal preventing cryogen gas loss. The conical seat design allows exceptional flow, positive shutoff and less chance of debris accumulation in the flow path, all resulting in an overall longer service life. Maintenance on the packing and seat is quick and easy.

Features • Soft Seat: PCTFE material which is the most widely specified cryogenic seat material in the industry. • Construction: Bolted bonnet allows easy access to the valve internals for servicing. • Stem Packing: Proven Kold-Seal technology, Live Loaded PTFE. • Sizes: ¼” through 2” • Connection: Socket weld and butt weld. • Service: Liquefied and vaporized atmospheric gases, LNG. • Temperature Rating: -325°F to +150°F (-198°C to +65°C). • Pressure Rating: Cold, Non-Shock, 725 psig (50 barg) Class 300 (PN 50). • Cleaned and packaged for oxygen service per CGA G-4.1. • Application: Multiple stem lengths available for selected service. • Packaging: Each valve is individually bagged and boxed to arrive in factory new condition until installation.
