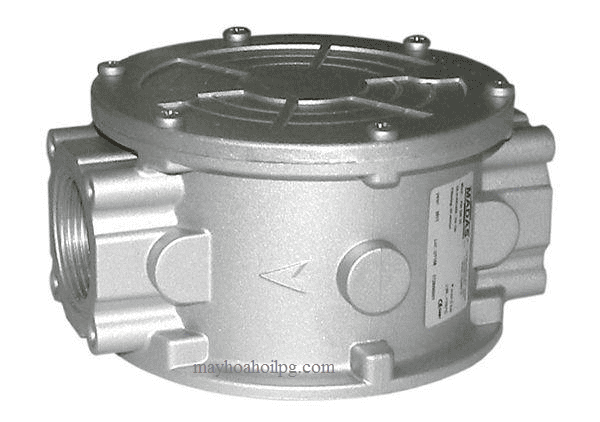

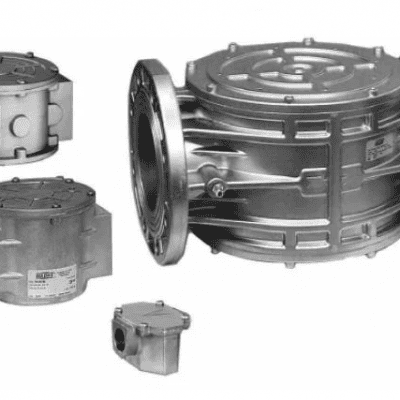

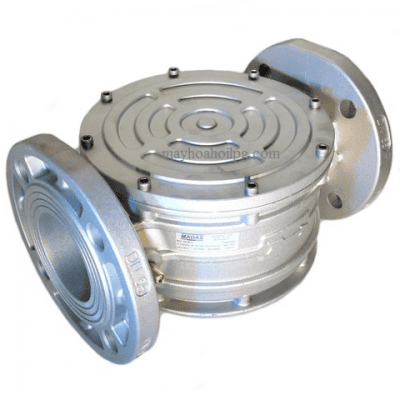

LOC GAS MADAS FM-FMG

LỌC GAS MADAS FM-FGM - P.MAX 2 - 6 BAR CE-51AR1070
Model: FM-FMG
Áp suất: 2-6 bar
Size kết nối: DN 15, DN20, DN25, DN40, D50

TECHNICAL DATA
• Use : non-aggressive gases of the three families (dry gases)
• Ambient temperature (TS) : -40 ÷ +70°C
• Maximum operating pressure : 2 or 6 bar (see product label)
• Mechanical strength : Group 2 (according to EN 13611)
• Rp threaded connections : (DN 15 - DN 20 - DN 25 - DN 32 - DN 40 - DN 50) according to EN 10226
• Flanged connections that can be coupled to PN 16 flanges : (DN 25* - DN 32 - DN 40 - DN 50) ISO 7005 / EN 1092-1
• NPT threaded or ANSI 150 flanged connections : on request
• Filter element : Filtering 10-20-50 µm
• In compliance with : Regulation (EU) 2016/426 (Appliances burning gaseous fuels)
PED Directive 2014/68/EU
* DN 25 with swivel flanges.
MODEL IDENTIFICATION
