LỌC GAS MADAS FMC

Hãng sản xuất:

MADAS

Mã sản phẩm:

FMC

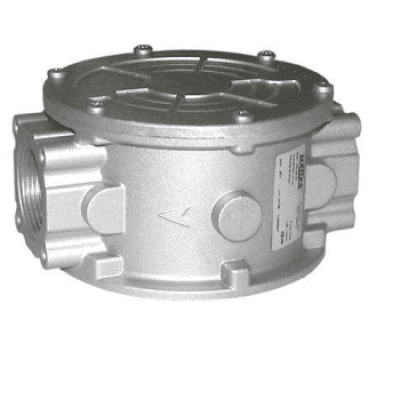

LỌC GAS MADAS FMC (COMPACT) - P.MAX 2 - 6 BAR CE-51AR1070
Model: FMC DN15, FMC DN20, FMC DN25
Hãng sx: Madas

Áp suất: 2-6bar
Lưới lọc: 10-20-50 micromet
Size kết nối: DN15, DN20, DN25

MỌI CHI TIẾT VUI LÒNG LIÊN HỆ HOTLINE: 0901 268 208

LH: 0901268208

LỌC GAS MADAS FMC (COMPACT) - P.MAX 2 - 6 BAR CE-51AR1070
Model: FMC DN15, FMC DN20, FMC DN25
Hãng sx: Madas

Áp suất: 2-6bar
Lưới lọc: 10-20-50 micromet
Size kết nối: DN15, DN20, DN25

TECHNICAL DATA
• Use : non-aggressive gases of the three families (dry gases)
• Ambient temperature (TS) : -40 ÷ +70 °C
• Maximum operating pressure : 2 or 6 bar (see product label)
• Mechanical resistance : Group 2 (according to EN 13611)
• Rp threaded connections : (DN 15 - DN 20 - DN 25) according to EN 10226
• NPT threaded connections : request feasibility
• Filter element : Filtering 10-20-50 µm (see product label)

• In compliance with

: Regulation (EU) 2016/426 (Appliances burning gaseous fuels)
PED Directive 2014/68/EU

MODEL IDENTIFICATION
FMC: Compact gas filter - P.max = 2 or 6 bar - Rp DN 15 - Rp DN 20 - Rp DN 25
