ASME Multivalves® for Vapor Withdrawal G8475RL Series Valves with Presto-Tap PG8475, PT7556 Series Rego Valves

ASME Multivalves® for Vapor Withdrawal G8475RL Series Valves with Presto-Tap PG8475, PT7556 Series Valves

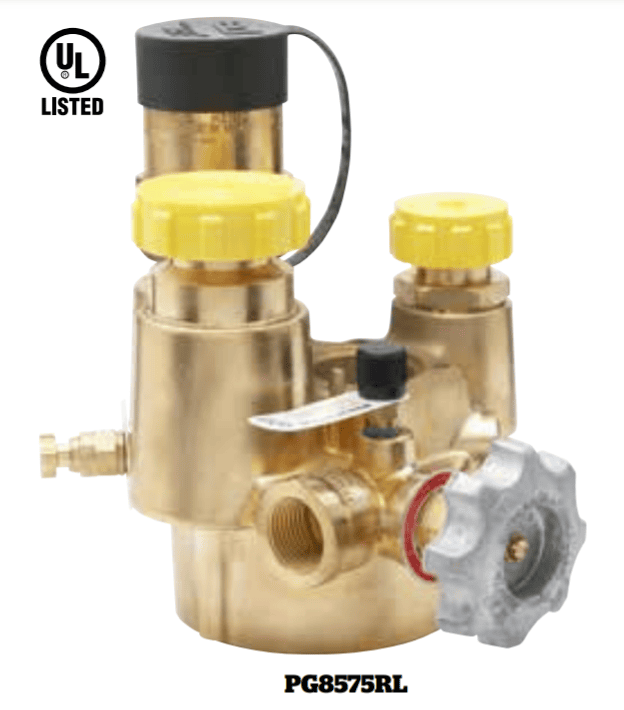

Model: PG8575RL
Xuất xứ: Rego USA

Application These Multivalves® are designed for use in single opening ASME containers equipped with a 2½” M. NPT riser. They can be used with underground ASME containers up to 639 sq. ft. surface area, and above ground ASME containers up to 192 sq. ft. surface area. A separate opening is required for liquid withdrawal. The MultiBonnet® is standard on this valve.

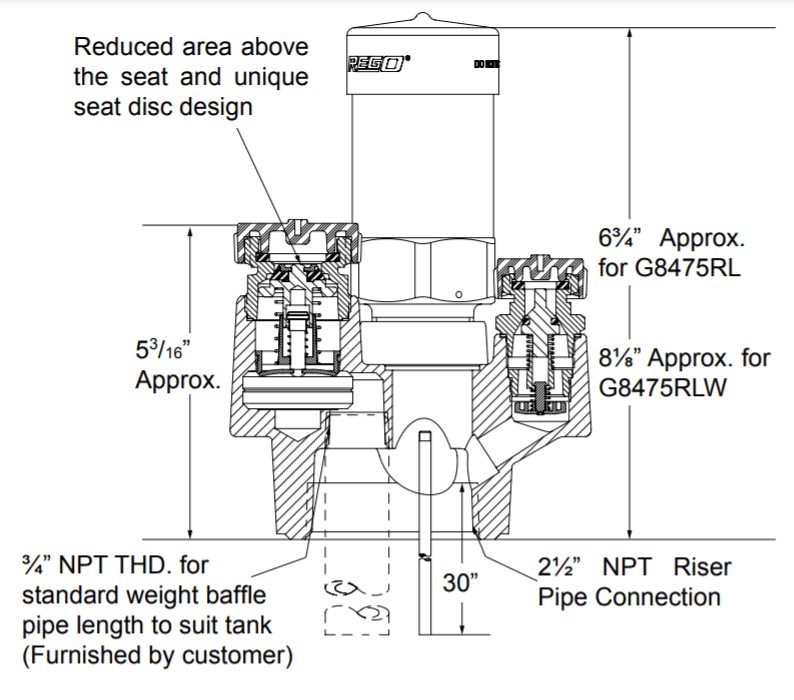

Features • The most complete Multivalve® assembly in the LP-Gas industry. • Combines low emission double back check filler valve, vapor equalizing valve, pressure relief valve, service valve, fixed liquid level gauge, “junior” sized float gauge flange opening and a plugged pressure gauge opening. • Double back check filler valve is low emission, 2.13cc at disconnection with no reduction in fill rates. • Designed for installation of a ⅛” FNPT pressure gauge or pressure gauge connection. The pressure test port will communicate to the downstream side of the service valve. • PG8475RL Version: With the service valve closed the pressure test/Presto-Tap® port is isolated from the container. This will allow a high pressure leak test to be conducted without disconnecting the pigtail from the service valve. For more information see page C12. • Vapor equalizing valve with excess flow has increased capacity matched to the filler valve. • Internal threads accommodate 2½” M. NPT riser pipe connection and a ¾” F. NPT connection for a customer furnished liquid baffle tube. • MultiBonnet® allows quick and easy repair of bonnet
