THIẾT BỊ ĐO MỨC BỒN Rotogauge 25A A9090 Rego

THIẾT BỊ ĐO MỨC BỒN Rotogauge 1" Rego
Model: A9090 Series
Hãng sản xuất: Rego USA

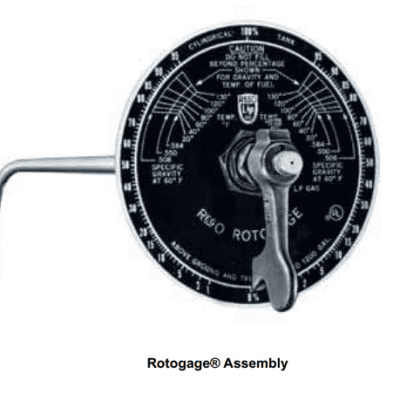

1” Rotogages® for Large Mobile and Stationary Containers
A9090 Series
Application
RotogagesŠ are designed to provide an accurate determination of
LPGas or anhydrous ammonia container contents. They mount in a
standard 1´ NPT coupling on large mobile or stationary containers.
To operate the RotogagesŠ, the vent valve is opened and the dip
tube rotated slowly from the container vapor space to the liquid
space. The difference in appearance of the discharge indicates when
the liquid level is reached. Dial readings then indicate the percentage
of product in the container.
Features
‡ Supported design (TS Models) eliminates whipping and the need
for internal support hangers.
‡ Resistance-free nylon bearing inserts reduce friction and promote
operating ease.
‡ Dial face is dual calibrated to provide greater accuracy in reading
contents in containers which are not level.
‡ Interchangeable accessory dials permit interchangeable service
between LP-Gas and anhydrous ammonia.
